ACABAMENTO EM ZINCO BRANCO
COM 1 ROLAMENTO

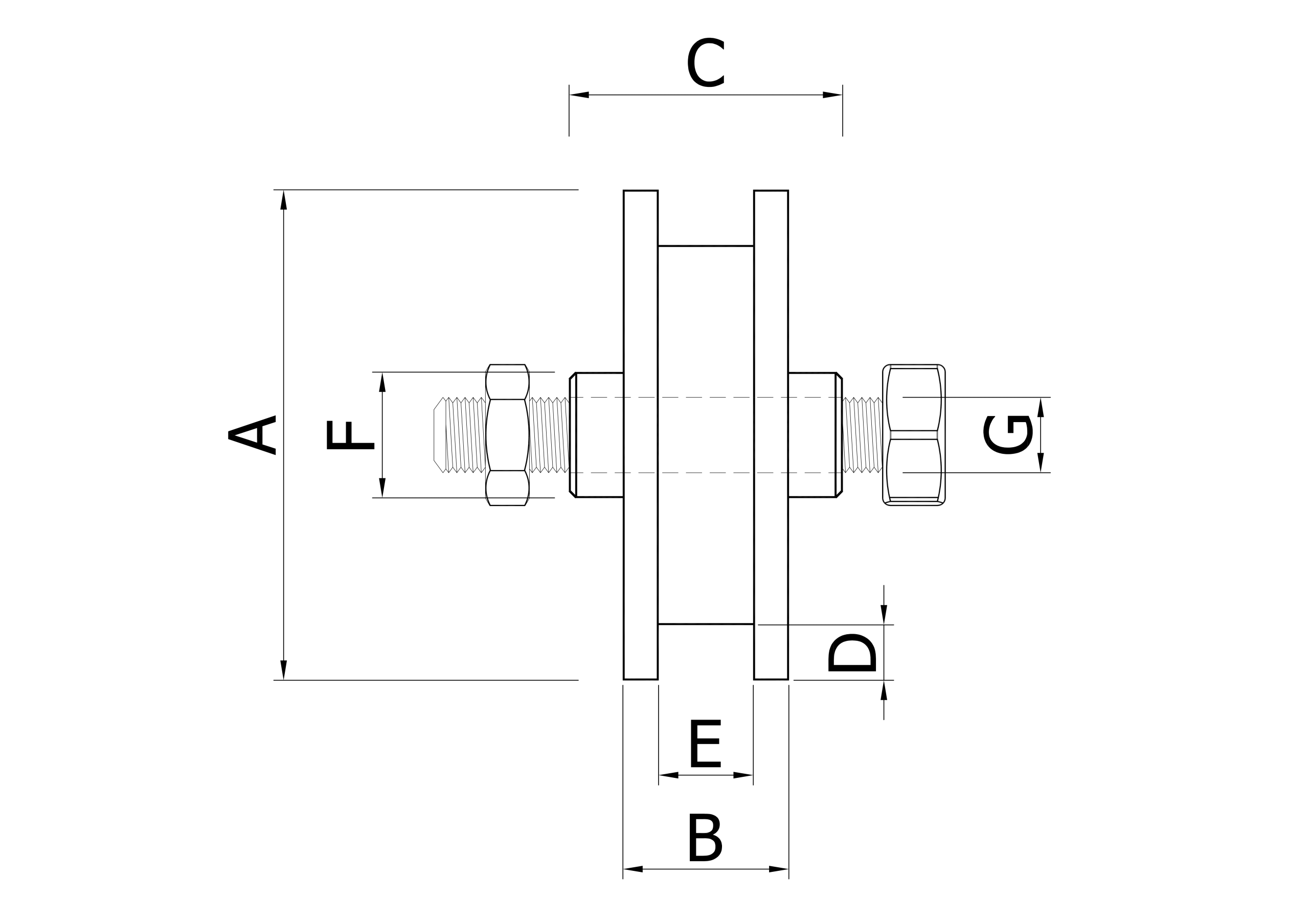

| CÓDIGO | REF. | A | B | C | D | E | F | G | H | EMBAL. MASTER | CAPACID. DE CARGA |
| 030402 | 2″ | 49 | 18 | 50 | 15,9 | 9 | 6 | 5/16″ | 25 | 150 (KG) | |
| 030403 | 2½” | 62 | 20 | 50 | 15,9 | 9 | 7 | 3/8″ | 25 | 200 (KG) | |
| 030404 | 3” | 74 | 22 | 50 | 18 | 9 | 7 | 3/8″ | 25 | 280 (KG) | |
| 030405 | 3½” | 87 | 22 | 50 | 18 | 9 | 7 | 3/8″ | 20 | 320 (KG) | |
| 030406 | 4” | 100 | 25 | 50 | 18 | 9 | 7 | 3/8″ | 15/20 | 380 (KG) | |
| 030408 | 5″ | 125 | 30 | 70 | 20 | 9 | 7 | 1/2″ | 10 | 530 (KG) | |
| 030410 | 6″ | 150 | 30 | 70 | 20 | 9 | 7 | 1/2″ | 4/6 | 530 (KG) | |
| 030412 | 7″ | 178 | 30 | 70 | 25 | 9 | 7 | 5/8″ | 2 | 630 (KG) | |
| 030414 | 8″ | 200 | 30 | 70 | 25 | 9 | 7 | 5/8″ | 2 | 630 (KG) |
CANAIS COM OUTRAS MEDIDAS SOB CONSULTA
