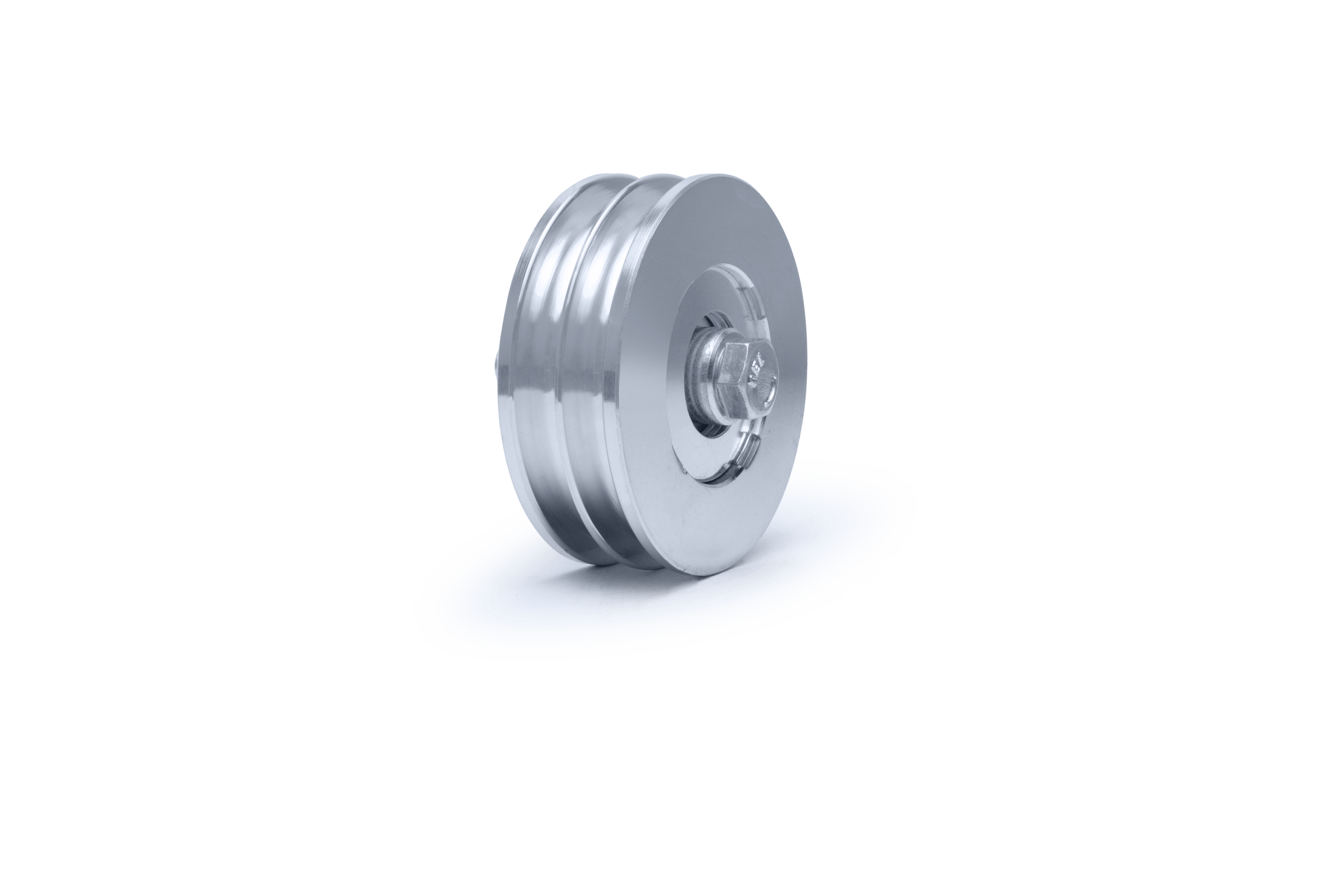

ACABAMENTO EM ZINCO BRANCO
COM 1 ROLAMENTO

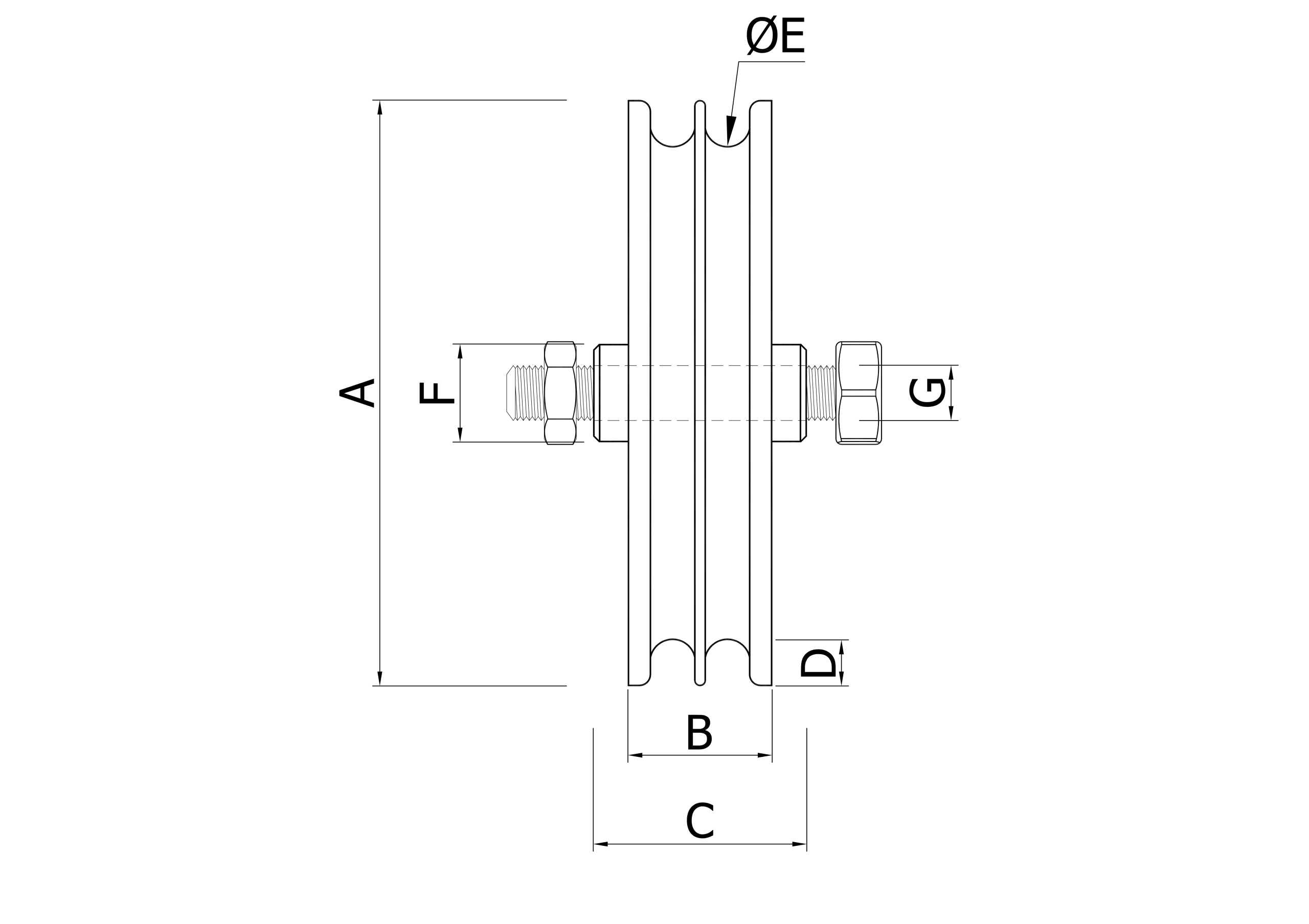

| CÓDIGO | REF. | A | B | C | D | E | F | G | H | EMBAL. MASTER | CAPACID. DE CARGA |
| 023302 | 2″ | 49 | 25 | 30 | 15,9 | 8 | 6,5 | 5/16” | 25 | 240 (KG) | |
| 023303 | 2½” | 62 | 25 | 30 | 15,9 | 8 | 8 | 3/8” | 20 | 320 (KG) | |
| 023304 | 3″ | 74 | 25 | 30 | 18 | 8 | 8 | 3/8” | 10 | 450 (KG) | |
| 023305 | 3½” | 87 | 25 | 30 | 18 | 8 | 8 | 3/8” | 10 | 510 (KG) | |
| 023306 | 4″ | 100 | 25 | 30 | 18 | 8 | 8 | 3/8” | 10 | 610 (KG) | |
| 023308 | 5″ | 125 | 30 | 40 | 20 | 10 | 8 | 1/2” | 06 | 850 (KG) | |
| 023310 | 6″ | 150 | 30 | 40 | 20 | 10 | 8 | 1/2” | 04 | 850 (KG) | |
| 023312 | 7″ | 178 | 30 | 40 | 25 | 10 | 8 | 5/8” | 02 | 1010 (KG) | |
| 023314 | 8” | 200 | 30 | 40 | 25 | 10 | 8 | 5/8” | 02 | 1010 (KG) |
