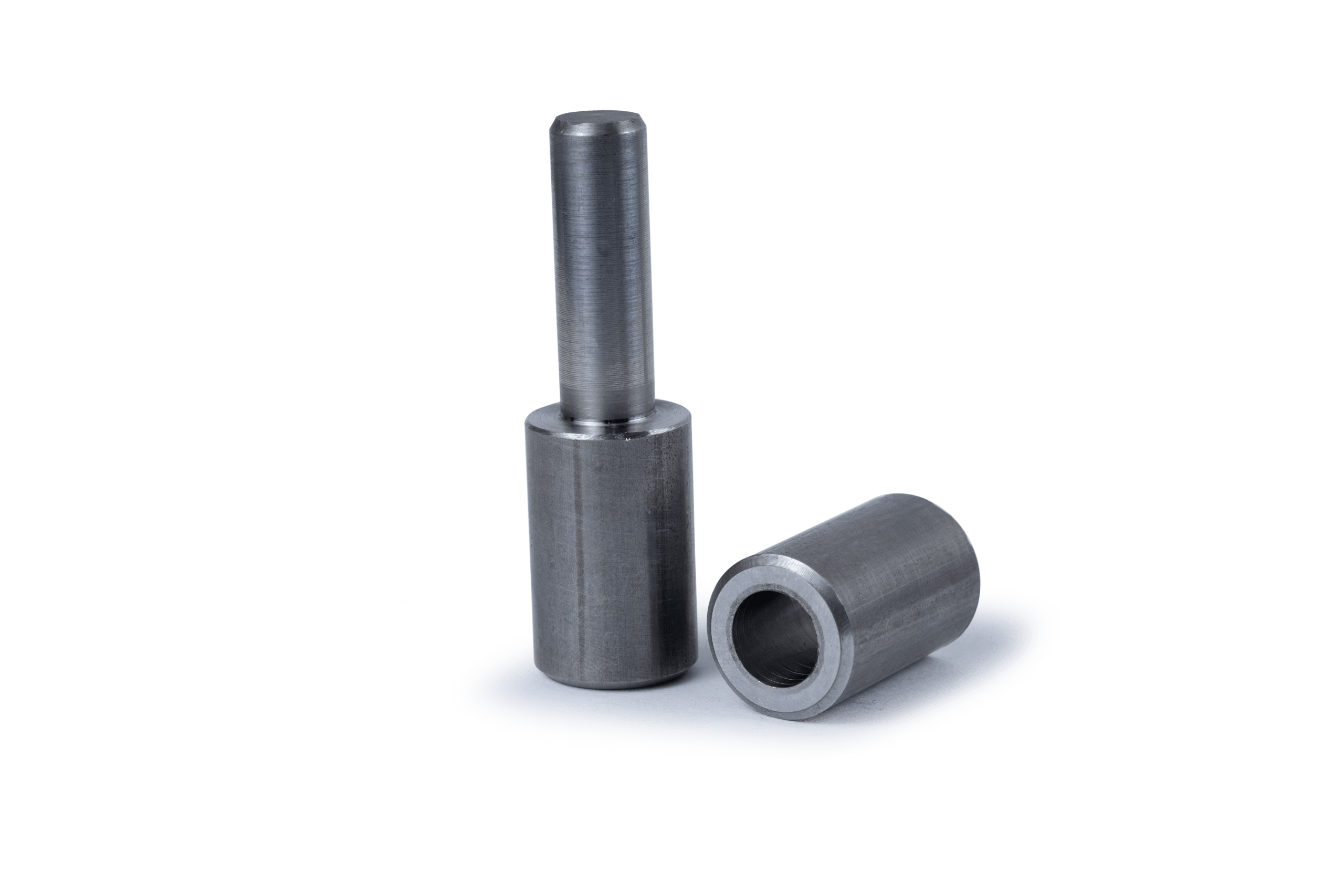

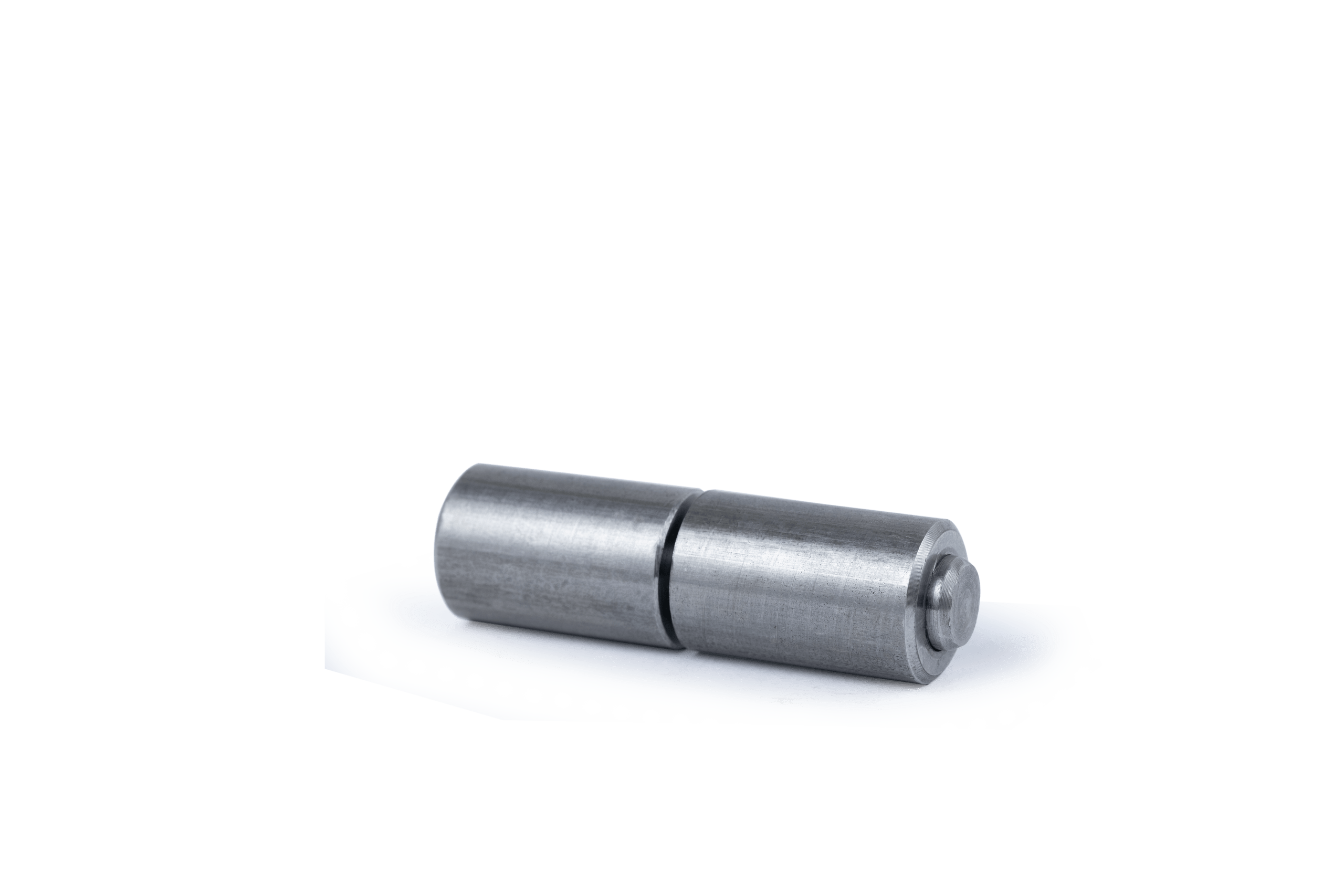

GONZO TORNEADO

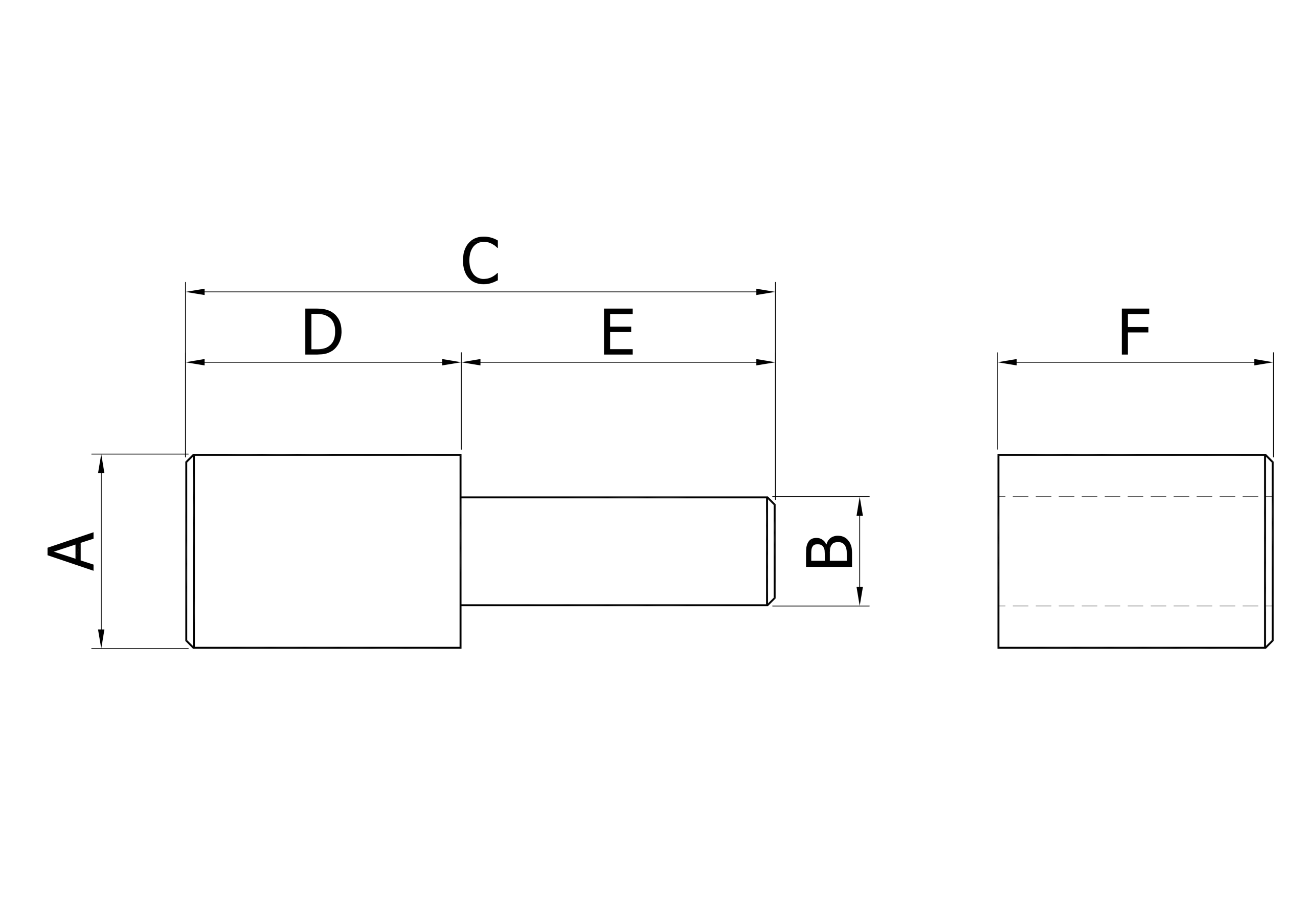

| CÓDIGO | REF. | A | B | C | D | E | F | G | H | EMBAL. MASTER |
| 080301 | 3/8” | 3/8” | 1/4″ | 55 | 25 | 30 | 25 | 100 | ||
| 080302 | ½” | ½” | 5/16″ | 59,5 | 27,5 | 32 | 27,5 | 100 | ||
| 080303 | 5/8″ | 5/8″ | 3/8″ | 59,5 | 27,5 | 32 | 27,5 | 100 | ||
| 080304 | 3/4” | 3/4” | 7/16″ | 68 | 32 | 36 | 32 | 100 | ||
| 080305 | 7/8″ | 7/8″ | ½” | 75 | 35 | 40 | 35 | 50 | ||
| 080306 | 1” | 1” | 9/16″ | 75 | 35 | 40 | 35 | 25 | ||
| 080307 | 1 1/4″ | 1 1/4″ | 3/4″ | 100 | 45 | 55 | 45 | 20 | ||
| 080308 | 1.1/2″ | 1.1/2″ | 3/4″ | 120 | 55 | 65 | 55 | 10 |
